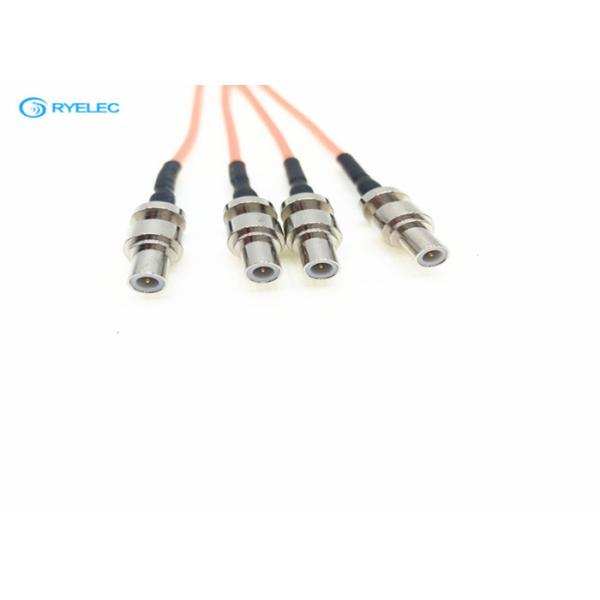

waterproof Violet fakra D male connector to ufl rg316 pigtail cable assembly

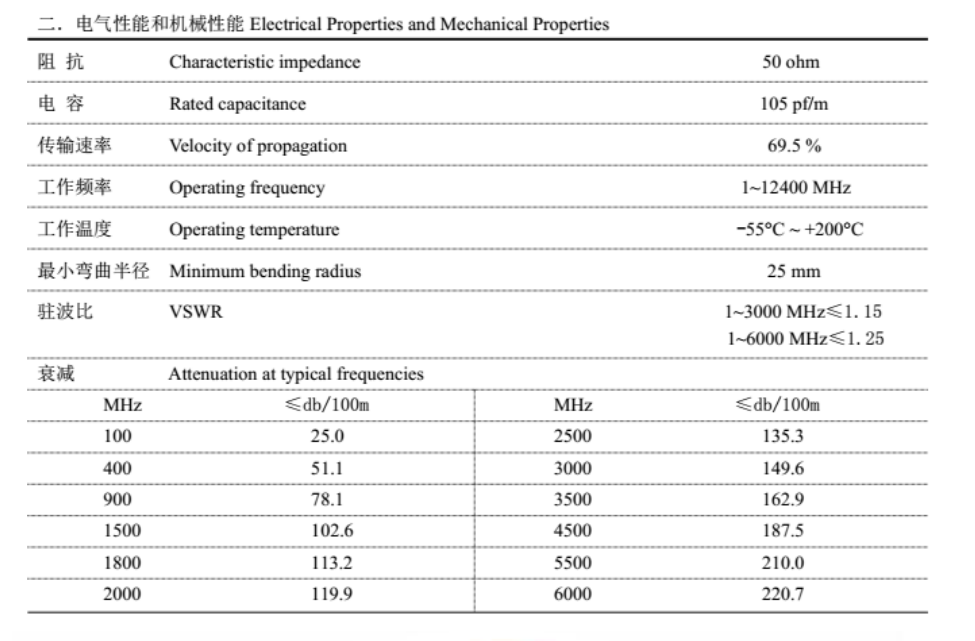

Electrical Characteristics
| ELECTRICAL DATA |
| Impedance |
50Ω |
| Frequency range |
DC-6Ghz |
| VSWR |
1.3 max |
| Voltage |
60V AC(rms) |
| Insulation Resisitance |
500 MΩ min. |
| Insertion Loss |
0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ |
| Connector |
fakra D to ufl |
| MATERIAL DATA |
| Bodies |
Brass--gold plating |
| Pin contacts |
Brass--gold plating |
| Socket contacts |
Copper-beryllium alloy--Au plating |
| Insulator |
PTFE |
| Cable type |

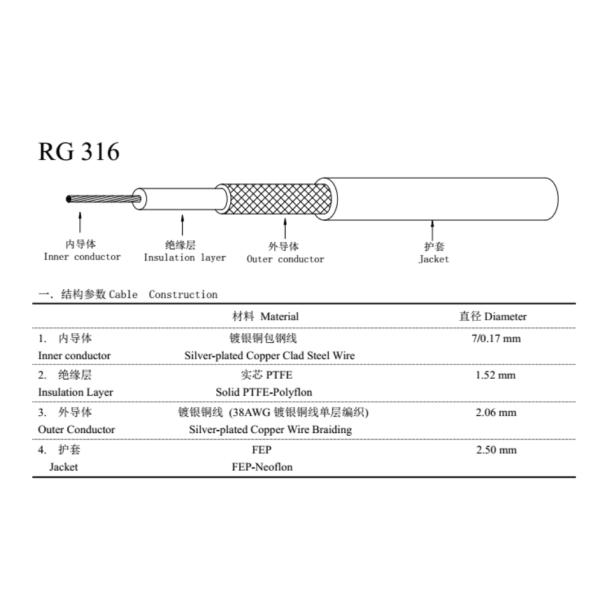

0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240 |
| Application |
smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc |
| Temperature range |
-40°C to +80°C |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Good After-Sales Service: we could offer technical support or return service in short time.
4. 1 Year Warranty.
5. OEM/ODM service.
6. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3. What's your company MOQ?
our company don't have MOQ. We also accept small quantity.
4. Can your company accept customize?
Welcome OEM & ODM.
5. What's your delivery time?
If our company have stock ,will send to you within one day once receive your payment.
6.How do you solve after sale service?
This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you or we will re-produce for you.
7. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
